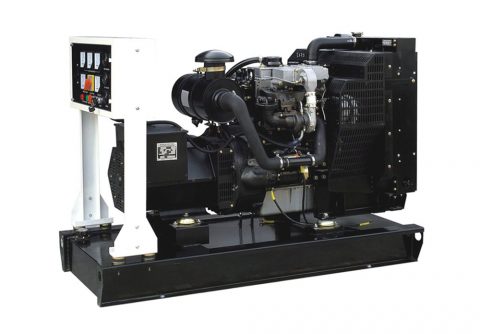

Prime 180kva standby 200kva Perkins diesel generator with 6 cylinder
Prime 180kva standby 200kva Perkins diesel generator with 6 cylinder manufactured by China manufacturer, powered by Perkins China 1106-70TAG3 diesel engine and real Stamford UCI274G alternator, reliable quality with competitive price.
General Details
Standby 200kva Perkins Diesel Generator Overall Specifications
| Model: | 144GF-P |
| Prime Power: | 144KW/180KVA |
| Standby Power: | 158KW/200KVA |
Diesel Engine Specifications
| Engine Model | 1106-70TAG3 |
| Engine Manufacturer | Perkins CHINA |
| Cylinder quantity | 6 |
| Cylinder Arrangement | In-line |
| Cycle | 4 |
| Aspiration | Turbo charged |
| Bore x Stroke (mm x mm) | 105×135 |
| Displacement | 7.01 L |
| Compression Ratio | 16:1 |
| Prime power / Speed (KW/RPM) | 144kw/1500 |
| Standby power/ Speed (KW/RPM) | 160kw/1500 |
| Governor type | Mechanical |
| Piston Speed | 1500 rpm |
| ElectropaK net engine power | 160kw |
| Total Lubrication System Capacity (L) | 16.5 |
| Total Coolant Capacity (L) | 21 |
Alternator Specifications
| Alternator model | UCI274G |
| Alternator manufacturer | STAMFORD |
| Exciter type | Single bearing, Brushless, Self-excited |
| Rated output prime power | 180?KVA |
| Rated speed | 1500 rpm |
| Rated frequency | 50Hz |
| Number of phase | 3 |
| Rated voltage | 400V (Available with custom requirements) |
| Power factor | 0.8 |
| Voltage regulation NL-FL | ≤±1% |
| Insulation grade | H |
| Protection grade | IP23 |
Dimension & Weight
| Open Type Size:L×W×H (mm) | 2400×900×1500 | Silent Type Size:L×W×H (mm) | 3150×1300×2000 |
| Open Type Weight (kg) | 1500 | Silent Type Weight (kg) | 2600 |
