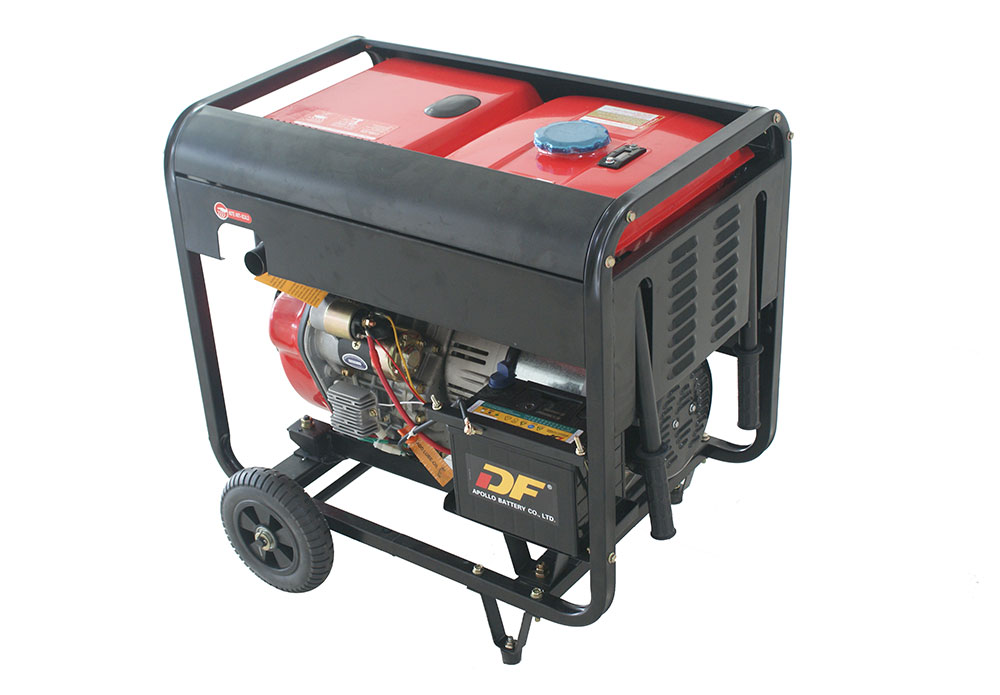

Maintance free wholesale max 5.8kw diesel generator set easy to carry

SKU: SD5200P Category: Small Diesel Generator

General Details

Technical specifications of maintance free wholesale max 5.8kw diesel generator set easy to carry :

Model		SD5200P
Rated frequency	Hz	50 / 60
Rated output	kVA ( kw )	5.2 / 5.5
Max. output	kVA ( kw )	5.5 / 5.8
Rated Voltage	V	230 or 110
Rated current	A	23.9
Rated rotation speed	r/min	3000 3600
Phases		Single phase
Power factor	Cos Φ	1
Insulation Grade		B
Pole number		2
Excitation mode		Self-excitation and AVR
Panel Type		General Panel
Voltage	V	230 or 110v
Receptacle		Two receptacles
Connection pole		Without
DC12V output		Connection pole output
Overall dimension（L×W×H）	mm	720X492X710
Net weight	kg	102
Gross weight	kg	117
Noise level（7m）	dB(A)	77
Structure type		Open type
Engine Model		YM190FG
Engine Type		Single cylinder, vertical, four-stroke, direct injection, air-cooled
Bore×stroke	mm	90×74
Displacement	ml	542
Rated power	KW/(r/min)	7.5/3000
Compression ratio		19:01
Lubrication system		Pressure splashed
Starting system		Electric starter
Fuel type		0＃（summer）-10＃（winter）-35＃（chillness）diesel
Lube oil brand		CD grade or SAE10W-30，15W-40
Lube capacity	L	1.65
Starting motor capacity	V-kW	12V 0.8kW
Charging generator capacity	V-A	12V 3A
Battery capacity	v-Ah	12V 36Ah
Fuel consumption	g/kw.h	≤370
Fuel tank capacity	L	13.5
Continuous running time	hour	5.5
