Europe standard Perkins 320kw diesel genset 400kva dg set cheap price

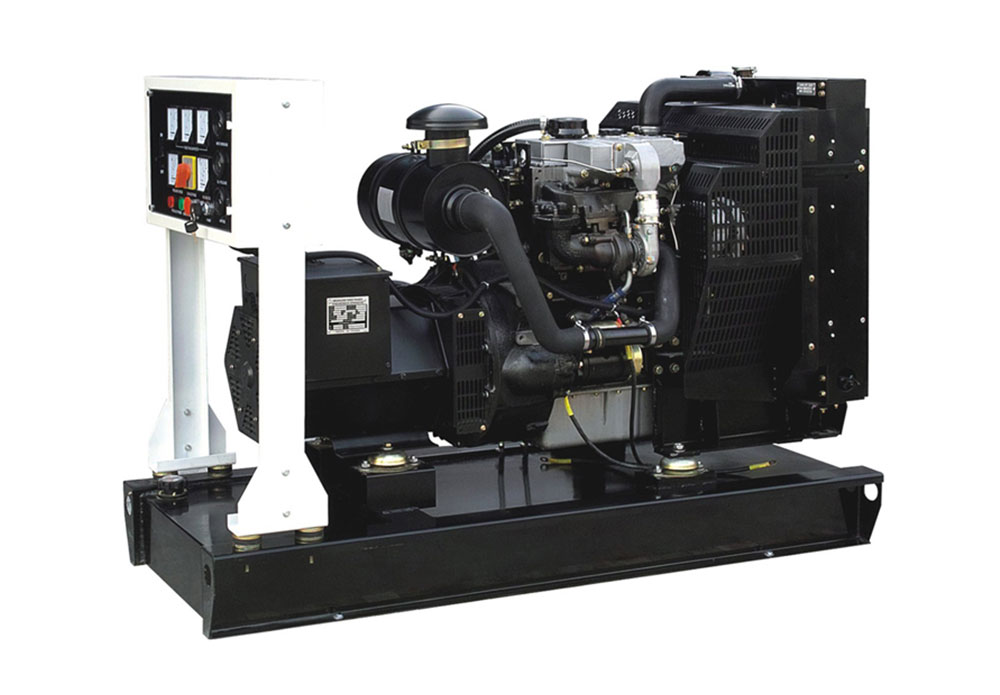

Europe standard Perkins 320kw diesel genset 400kva dg set cheap price manufactured by leading China diesel generator OEM factory, powered by original UK Perkins 2206C-E13TAG3 6 cylinders 4 stroke diesel engine and original Stamford brush-less alternator, maximum diesel fuel consumption within 220g/kw.h at 100% load, ideal for continuous running in factory, oil plant, mining etc. Output electricity frequency and voltage can be customized per customer's requirements. Please email us to get the best price.

SKU: 320GF-P Category: Perkins Diesel Generator

General Details
Inquire this product
Product Video

General Details

Europe standard Perkins 320kw diesel genset 400kva dg set overall specifications

Model:	320GF-P
Prime Power:	320KW/400KVA
Standby Power:	360KW/450KVA

Diesel Engine Specifications

Engine Model	2206C-E13TAG3
Engine Manufacturer	Perkins UK
Cylinder quantity	6
Cylinder Arrangement	In-line
Cycle	4
Aspiration	Turbo charged
Bore x Stroke (mm x mm)	130×157
Displacement	12.5 L
Compression Ratio	16.3:1
Prime power / Speed (KW/RPM)	368.4kw/1500
Standby power/ Speed (KW/RPM)	412.5kw/1500
Governor type	Electric
Piston Speed	N.A.
Typical genset electrical output	320 kw
Total Lubrication System Capacity (L)	40
Total Coolant Capacity (L)	51.4
Fuel Consumption at 100% load (L/hour)	85 L
Starter motor	24V
Alternator	24V
Minimum cranking speed	106 rpm

Alternator Specifications

Alternator model	HCI444F
Alternator manufacturer	STAMFORD
Exciter type	Single bearing, Brushless, Self-excited
Rated output prime power	400KVA
Rated speed	1500 rpm
Rated frequency	50Hz
Number of phase	3
Rated voltage	400V (Available with custom requirements)
Power factor	0.8
Voltage regulation NL-FL	≤±1%
Insulation grade	H
Protection grade	IP23

Dimension & Weight

Open Type Overall Size:L×W×H (mm)	3800×1500×2400	Silent Type Overall Size:L×W×H (mm)	4500×2600×3500
Open Type Weight (kg)	2800	Silent Type Weight (kg)	4300
