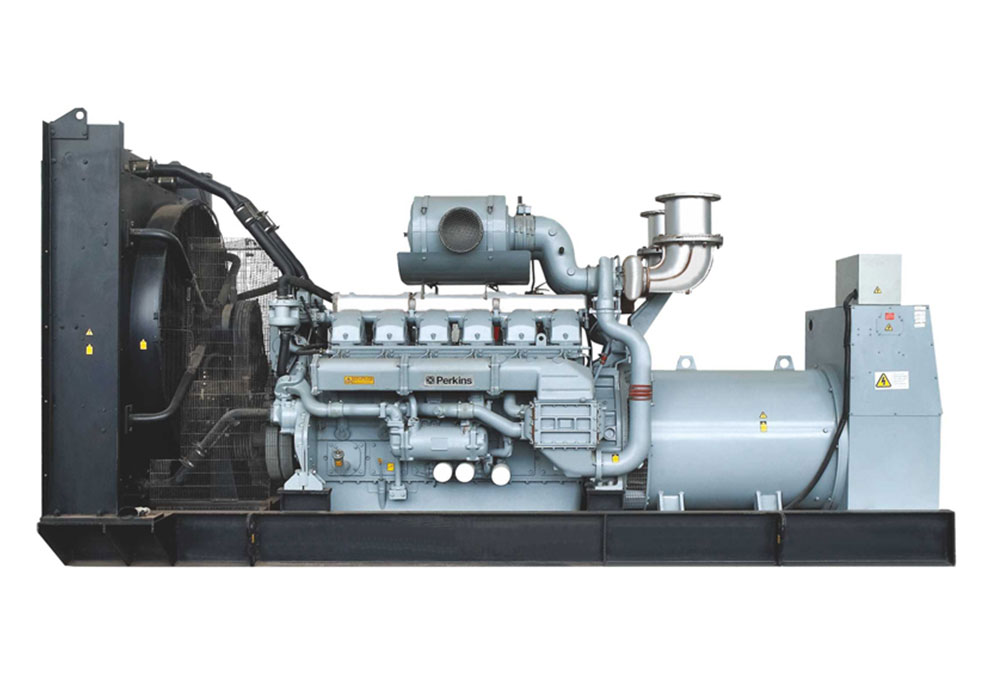

Continuous power COP 400kw 500kva Perkins diesel generator for sale

Continuous power COP 400kw 500kva Perkins diesel generator set for sale with reliable quality from China OEM manufacturer, powered by genuine UK Perkins 6 cylinders 15 liter displacement 2506C-E15TAG2 diesel engine and original Stamford HCI544C AVR brushless alternator, controlled by Deepsea or ComAp smart control panel, suitable for industrial usage especially in high end market like Middle East, United Kingdom, Ireland, Germany, France, Italy etc. Send an inquiry today to get a cheap offer.

SKU: 400GF-P Category:
General Details

Continuous power COP 400kw 500kva Perkins diesel generator overall specifications

Model: 400GF-P
Prime Power: 400KW/500KVA
Standby Power: 440KW/550KVA

Diesel Engine Specifications

Engine Model 2506C-E15TAG2
Engine Manufacturer Perkins UK
Cylinder quantity 6
Cylinder Arrangement In-line
Cycle 4
Aspiration Turbo charged
Bore x Stroke (mm x mm) 137×171
Displacement 15 L
Compression Ratio 16:1
Prime power / Speed (KW/RPM) 451kw/1500
Standby power/ Speed (KW/RPM) 495kw/1500
Governor type Electric
Piston Speed N.A.
Typical genset electrical output 400?kw
Total Lubrication System Capacity (L) 62
Total Coolant Capacity (L) 58
Fuel Consumption at 100% load (L/hour) 106?L
Starter motor 24V
Alternator 24V
Minimum cranking speed 120 rpm

Alternator Specifications

Alternator model HCI544C
Alternator manufacturer STAMFORD
Exciter type Single bearing, Brushless, Self-excited
Rated output prime power 500KVA
Rated speed 1500 rpm
Rated frequency 50Hz
Number of phase 3
Rated voltage 400V (Available with custom requirements)
Power factor 0.8
Voltage regulation NL-FL ≤±1%
Insulation grade H
Protection grade IP23

Dimension & Weight

Open Type Overall Size:L×W×H (mm) 4500×1800×2500 Silent Type Overall Size:L×W×H (mm) 5250×2600×3500
Open Type Weight (kg) 3500 Silent Type Weight (kg) 5200
