CE ISO certificate 250kw 312.5kva dg set with perkins engine for sale

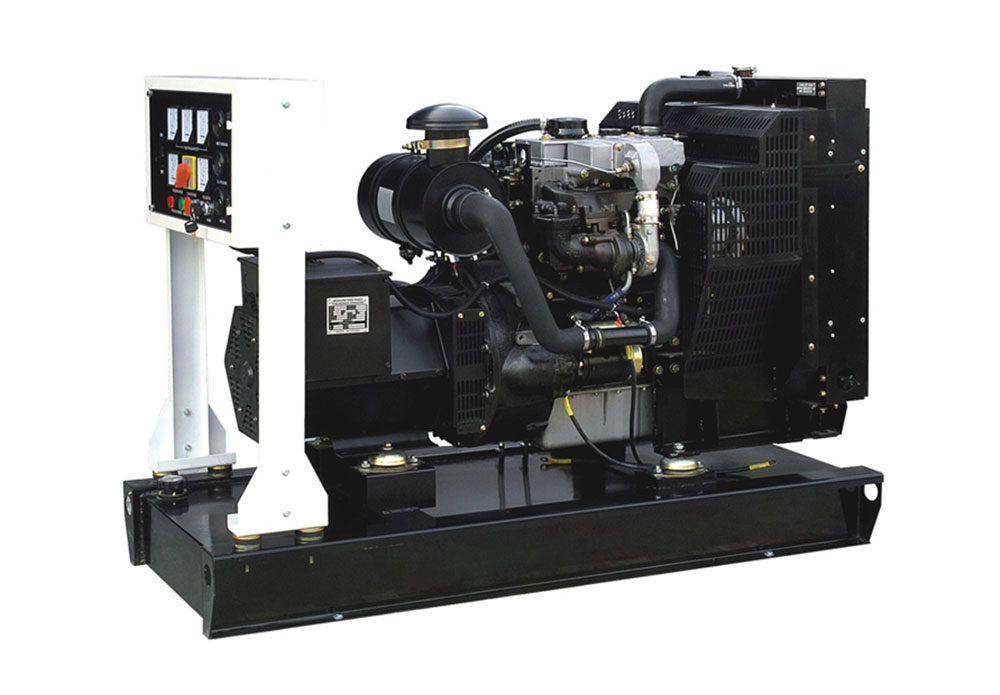

CE ISO certificate 250kw 312.5kva dg set with perkins engine for sale from professioanl China dealer, powered by United Kingdom Perkins 2206C-E13TAG2 6 cylinders 4 cycle diesel engine and Wuxi Stamford HCI444ES auto voltage regulation alternator, with standard export wooden package, both skid mounted open type and sound proof type diesel generator set available, high quality and global warranty, suitable for different commerical and industrial power generation purpose.

SKU: 250GF-P Category: Perkins Diesel Generator

General Details
Inquire this product
Product Video

General Details

CE ISO certificate 250kw 312.5kva Perkins engine dg set overall specifications

Model:	250GF-P
Prime Power:	250KW/312.5KVA
Standby Power:	275KW/344KVA

Diesel Engine Specifications

Engine Model	2206C-E13TAG2
Engine Manufacturer	Perkins UK
Cylinder quantity	6
Cylinder Arrangement	In-line
Cycle	4
Aspiration	Turbo charged
Bore x Stroke (mm x mm)	130×157
Displacement	12.5 L
Compression Ratio	16.3:1
Prime power / Speed (KW/RPM)	324.2kw/1500
Standby power/ Speed (KW/RPM)	368.4kw/1500
Governor type	Electric
Piston Speed	N.A.
Typical genset electrical output	280 kw
Total Lubrication System Capacity (L)	40
Total Coolant Capacity (L)	51.4
Fuel Consumption at 100% load (L/hour)	75?L
Starter motor	24V
Alternator	24V
Minimum cranking speed	106 rpm

Alternator Specifications

Alternator model	HCI444ES
Alternator manufacturer	STAMFORD
Exciter type	Single bearing, Brushless, Self-excited
Rated output prime power	325KVA
Rated speed	1500 rpm
Rated frequency	50Hz
Number of phase	3
Rated voltage	400V (Available with custom requirements)
Power factor	0.8
Voltage regulation NL-FL	≤±1%
Insulation grade	H
Protection grade	IP23

Dimension & Weight

Open Type Overall Size:L×W×H (mm)	3800×1500×2400	Silent Type Overall Size:L×W×H (mm)	4500×2600×3500
Open Type Weight (kg)	2800	Silent Type Weight (kg)	4300
