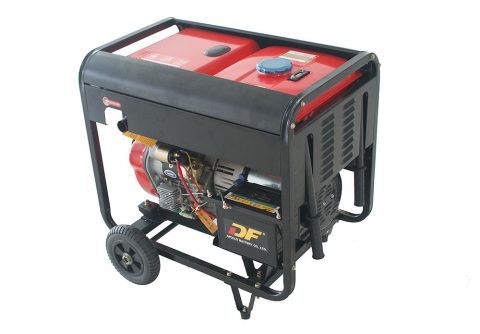

Air cooled 6 kw handy diesel generator set from China manufacturer

General Details

Technical specifications of air cooled 6 kw handy diesel generator set from China manufacturer :

Model SD5500P
Rated frequency Hz 50  / 60
Rated output kVA 5.5 / 5.8
Max. output kVA 5.8 / 6.2
Rated Voltage V 230 or 110
Rated current A 26
Rated rotation speed r/min 3000 /  3600
Phase No. Single phase
Power factor Cos Φ 1
Insulation Grade B
Pole number 2
Excitation mode Self-excitation & AVR
Panel Type General Panel
Voltage V 230 or 110
Receptacle Two receptacles
Connection pole Without
DC12V output Connection pole output
Overall dimension(L×W×H) mm 720X492X710
Net weight kg 102
Gross weight kg 117
Noise level(7m) dB(A) 77
Structure type Open type
Engine Model YM192FG
Engine Type Single cylinder, vertical, four-stroke, direct injection, air-cooled
Bore×stroke mm 92×75
Displacement ml 548
Rated power KW/(r/min) 8.0/3000
Compression ratio 19:01
Lubrication system Pressure splashed
Starting system Electric starter
Fuel type 0#(summer)-10#(winter)-35#(chillness)diesel
Lube oil brand CD grade or SAE10W-30,15W-40
Lube capacity L 1.65
Starting motor capacity V-kW 12V   0.8kW
Charging generator capacity V-A 12V   3A
Battery capacity v-Ah 12V   36Ah
Fuel consumption g/kw.h ≤370
Fuel tank capacity L 13.5
Continuous running time hour 5.5
