500kw 625kva MAN CHP natural gas generator also run on coal bed gas

Durable 500kw 625kva MAN CHP natural gas generator also run on coal bed gas from China OEM factory, run on natural gas, coal bed gas, coal mine gas, marsh gas and other methane gas , continuous 8000 working hours.

SKU: 500GF-MT Category:
General Details

1. 500kw 625kva MAN CHP natural gas generator Overall Technical Specifications:

Genset Model 500GT-MT
Rated Power 500KW / 620KVA
Rated Speed/ Rated Frequency 1500 rpm /50Hz
Rated Voltage 400/230V
Power Factor 0.8
Phase/Wire 3Phase/4Wire
Rated current (A) 900
Gas Type natural gas, coal bed gas, coal mine gas, marsh gas and other methane gas
Overall Size (mm) 3300x1700x1600
Weight (kg) 3900

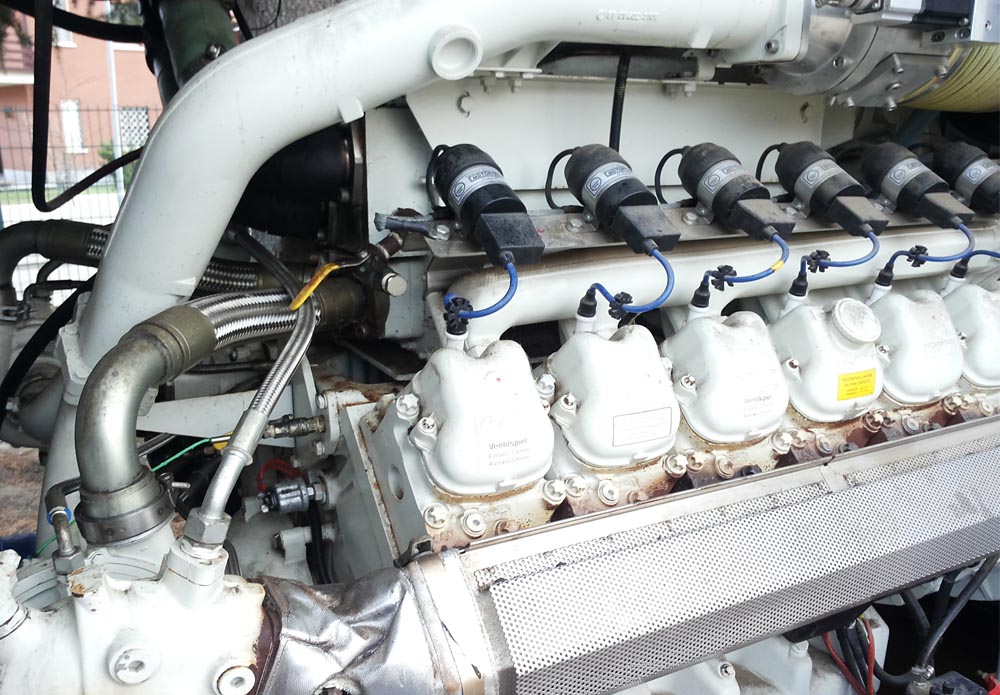

Engine Model MAN E3262LE202
Air intake way Turbo intercooled
Cooling way Closed cooling cycle
Cylinder 12
Displacement (L) 25.8
Bore×Stroke (mm) 132×157
Max. standby power @50Hz 550kw / 687.5kva
Alternator Model STAMFORD HCI544FS
Rated Power 500kw / 625kva
Excitation way Brushless and self exciting
Voltage control AVR
Insulation class H
Protection IP23
Remarks:

1.  Fuel requirements :methane content≥92% ( or Gas low heat value ≥ 33 MJ/Nm3 ), sulfur content≤200PPM,  impurities size≤5μm, impurities content≤50mg/Nm³, water content≤40 g/Nm3 ;

2.  Manufacturing standards:ISO8528-5,GB/T2820.5-2009,GB/T22343-2008;

3.  Every gas genset have been pass the test under the load of 0%,25%,50%,75%,100% and the response ability of static, dynamic test, all the protection device and control system are pass strict inspection before they leave factory.

2.Optional parts for 500kw 625kva MAN CHP natural gas generator

1)Soundproof canopy
2)Parallel cabinet
3)Synchronization cabinet
4)ATS
5)Inlet gas pressure adjusting valve
6)Gas water separator
7)Extra spare parts

3.Warranty policy of 500kw 625kva MAN CHP natural gas generator

1)Since gen-set reached the agreed destination, its main parts will be guaranteed within 12 months or 1000 hours (subject to the earlier mature term).
2)We take charge of all troubles caused by gen-set’s fault and repair according to the  regulation stipulated by original plants.
3)Factors not accordance with the regulation of original plants such as fragile parts, daily consumed components, wrong operating,lack of maintenance are not include in the quality guarantee.

4. Declaration for 500kw 625kva MAN CHP natural gas generator

The 500kw 625kva MAN CHP natural gas generator designed according to environment condition set by ISO 3046: atmospheric pressure 100kPa, sea level height 110m inlet gas temperature 25℃, relative humidity 30% and reference gross heat value of natural gas at minimum 33MJ/NM3(>=92% CH4 ).While using in places which don’t meet these conditions, generator rated power and outlet gas temperature parameters will be different more or less.

Feature parameters and technical data provided above was calculated through program with massive natural gas experiments and actual use data based on environment condition and natural gas
heat value and content mentioned above.

All generator parameters of 500GF-MT 500kw 625kva MAN CHP natural gas generator such as output power, heat consumption were rated value under basic load  ( 100% load ). Detailed analysis report  of 500kw 625kva MAN CHP natural gas generator 500GF-MT in different conditions will be provided by our engineer according to user’s actual environments and gas composition conditions if needed. For 60Hz 110V/220V output, please also contact us for detailed technical specification sheet.

Other party are not allowed to use our technical parameters for research and business purpose without our permission. We reserved the rights of changing our design without notify customer or the third party.
