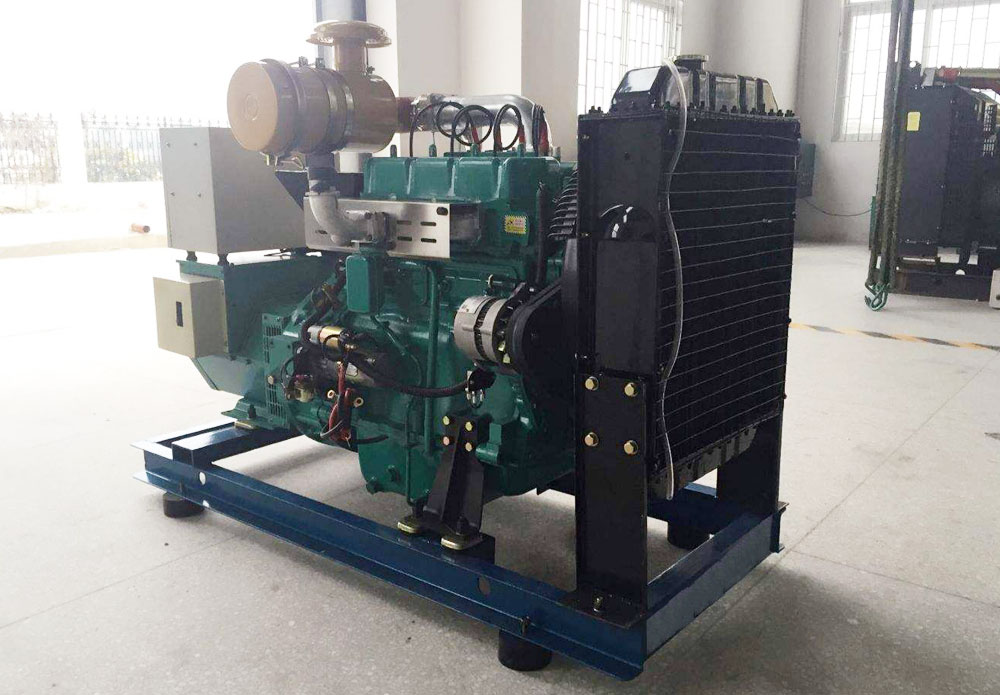

48kw 60kva cummins biogas generator set

New arrival 48kw 60kva cummins biogas generator set from China, run on landfill gas or biogas , suitable for standby application, with good quality, suitable for Japan.

SKU: 48GF-CSZ Category:
General Details

1. 48kw 60kva cummins biogas generator set Overall Technical Specifications:

Genset Model48GF-CSZ
Rated Power48KW / 60KVA
Rated Speed/ Rated Frequency1500 rpm /50Hz
Rated Voltage400/230V
Power Factor0.8
Phase/Wire3Phase/4Wire
Rated current (A)87
Gas Typebiogas
Overall Size (mm)2350x1000x1400
Weight (kg)1200
Engine ModelCummins 6BT5.9
Air intake wayTurbo intercooled
Cooling wayClosed cooling cycle
Cylinder6
Displacement (L)5.9
Bore×Stroke (mm)102x 120
Max. standby power @50Hz54KW /67.5KVA
Alternator ModelSTAMFORD UCI224E
Rated Power48kw / 60kva
Excitation wayBrushless and self exciting
Voltage controlAVR
Insulation classH
ProtectionIP23
Remarks:

1.  Fuel requirements :methane content≥60% ( or Gas low heat value ≥ 21.5 MJ/Nm3 ), sulfur content≤200PPM,  impurities size≤5μm, impurities content≤20mg/Nm³, water content≤20 g/Nm3 ;
2.  Manufacturing standards:ISO8528-5,GB/T2820.5-2009,GB/T22343-2008;
3.  Every gas genset have been pass the test under the load of 0%,25%,50%,75%,100% and the response ability of static, dynamic test, all the protection device and control system are pass strict inspection before they leave factory.

2.Optional parts for 48kw 60kva cummins biogas generator set

1) Soundproof canopy
2) Parallel cabinet
3) Synchronization cabinet
4) ATS
5) Inlet gas pressure adjusting valve
6) Gas water separator
7) Extra spare parts

3.Warranty policy of 48kw 60kva cummins biogas generator set

1). Since genset reached the agreed destination, its main parts will be guaranteed within 12 months or 1000 hours ( subject to the earlier mature term ).
2). We take charge of all troubles caused by genset’s fault and repair according to the regulation stipulated by original plants.
3). Factors not accordance with the regulation of original plants such as fragile parts, daily consumed components, wrong operating, lack of maintenance are not include in the quality guarantee .

4. Declaration for 48kw 60kva cummins biogas generator set

The 32kw 40kva cummins biogas generator set designed according to environment condition set by  ISO 3046: atmospheric pressure 100kpa, sea level height 110m , inlet gas temperature 25℃, relative humidity 30% and reference gross heat value of biogas at minimum 21.5MJ/NM3 (>=60% CH4 ). While using in places which don’t meet these conditions, generator rated power and outlet gas temperature parameters will be different more or less.

Feature parameters and technical data provided above was calculated through program with massive biogas experiments and actual use data based on environment condition and biogas heat value and content mentioned above.

All generator parameters of 32GF-CSZ 32kw 40kva cummins biogas generator set such as output power, heat consumption were rated value under basic load (100% load). Detailed analysis report of 32kw 40kva cummins biogas generator set 32GF-CSZ in different conditions will be provided by our engineer according to user’s actual environments and gas composition conditions if needed.For 60Hz 110V/220V output, please also contact us for detailed technical specification sheet.

Other party are not allowed to use our technical parameters for research and business purpose without our permission. We reserved the rights of changing our design without notify customer or the third party.
