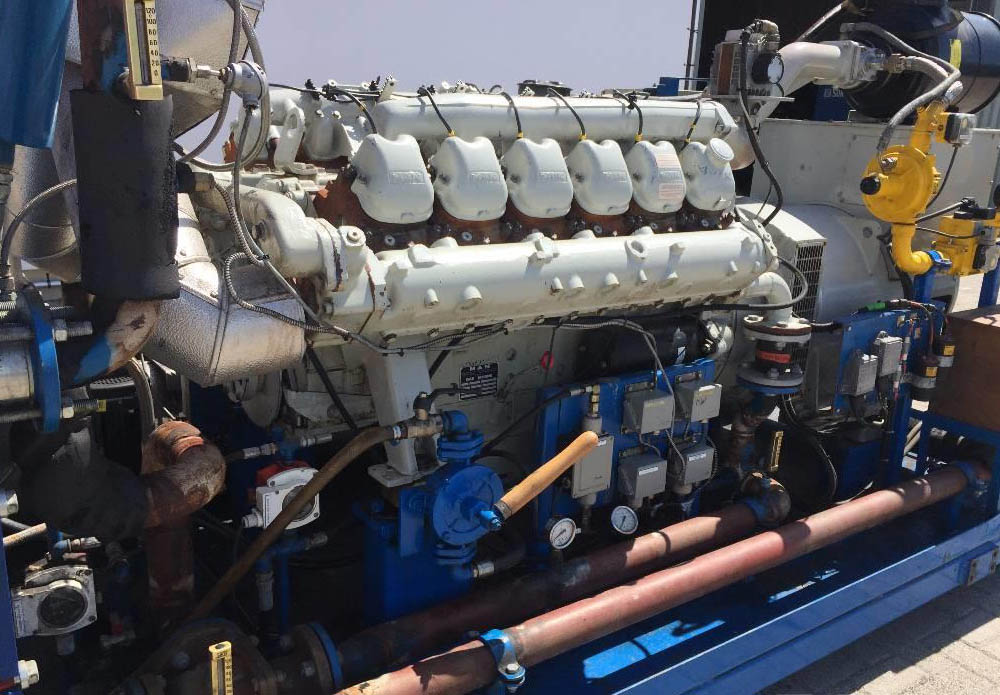

400kw 500kva original MAN sewage gas power plant generator set
1. 400kw 500kva original MAN sewage gas power plant generator set Overall Technical Specifications:
|Rated Power||400KW / 500KVA|
|Rated Speed/ Rated Frequency||1500 rpm /50Hz|
|Rated current (A)||720|
|Gas Type||natural gas, Sewage gas|
|Overall Size (mm)||3100x1500x1600|
|Engine Model||MAN E2842LE322|
|Air intake way||Turbo intercooled|
|Cooling way||Closed cooling cycle|
|Max. standby power @50Hz||420kw / 525kva|
|Alternator Model||STAMFORD HCI544C|
|Rated Power||400kw / 500kva|
|Excitation way||Brushless and self exciting|
1. Fuel requirements :methane content≥92% ( or Gas low heat value ≥ 33 MJ/Nm3 ), sulfur content≤200PPM, impurities size≤5μm, impurities content≤50mg/Nm³, water content≤40 g/Nm3 ;
2. Manufacturing standards:ISO8528-5,GB/T2820.5-2009,GB/T22343-2008;
3. Every gas genset have been pass the test under the load of 0%,25%,50%,75%,100% and the response ability of static, dynamic test, all the protection device and control system are pass strict inspection before they leave factory.
2.Optional parts for 400kw 500kva original MAN sewage gas power plant generator set
5)Inlet gas pressure adjusting valve
6)Gas water separator
7)Extra spare parts
3.Warranty policy of 400kw 500kva original MAN sewage gas power plant generator set
1)Since gen-set reached the agreed destination, its main parts will be guaranteed within 12 months or 1000 hours (subject to the earlier mature term).
2)We take charge of all troubles caused by gen-set’s fault and repair according to the regulation stipulated by original plants.
3)Factors not accordance with the regulation of original plants such as fragile parts, daily consumed components, wrong operating,lack of maintenance are not include in the quality guarantee.
4. Declaration for 400kw 500kva original MAN sewage gas power plant generator set
The 400kw 500kva original MAN sewage gas power plant generator set designed according to environment condition set by ISO 3046: atmospheric pressure 100kPa, sea level height 110m inlet gas temperature 25℃, relative humidity 30％ and reference gross heat value of natural gas at minimum 33MJ/NM3(>=92% CH4 ).While using in places which don’t meet these conditions, generator rated power and outlet gas temperature parameters will be different more or less.
Feature parameters and technical data provided above was calculated through program with massive natural gas experiments and actual use data based on environment condition and natural gas
heat value and content mentioned above.
All generator parameters of 400GF-MT 400kw 500kva original MAN sewage gas power plant generator set such as output power, heat consumption were rated value under basic load ( 100% load ). Detailed analysis report of 400kw 550kva original MAN sewage gas power plant generator set 400GF-MT in different conditions will be provided by our engineer according to user’s actual environments and gas composition conditions if needed. For 60Hz 110V/220V output, please also contact us for detailed technical specification sheet.
Other party are not allowed to use our technical parameters for research and business purpose without our permission. We reserved the rights of changing our design without notify customer or the third party.
