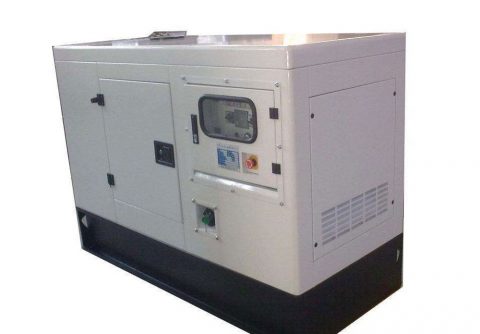

24 kw England Perkins small silent diesel generator set for Dubai

Backup 24 kw 30 kva England Perkins small size silent diesel generator set for Dubai and other hot weather countries and regions selling from China vendor, ideal for home backup power source, powered by Perkins 1103A-33G diesel engine and original Stamford PI124F alternator; Leroy Somer or Marathon branded 3 phases alternator available too, please contact us to get detailed discount price.

SKU: 24GF-P Category:
General Details

24 kw England Perkins small silent diesel generator set for Dubai overall specifications

Model: 24GF-P
Prime Power: 24KW/30KVA
Standby Power: 26.4KW/33KVA

Diesel Engine Specifications

Engine Model 1103A-33G
Engine Manufacturer Perkins UK
Cylinder quantity 3
Cylinder Arrangement In-line
Cycle 4
Aspiration Naturally
Bore x Stroke (mm x mm) 105×127
Displacement 3.3?L
Compression Ratio 19.25:1
Prime power / Speed (KW/RPM) 28.2kw/1500
Standby power/ Speed (KW/RPM) 31kw/1500
Governor type Electric
Piston Speed 6.35m/s
Typical genset electrical output (0.8 pf?25°C) 24kw
Total Lubrication System Capacity (L) 8.3
Coolant Capacity (L) 4.4
Fuel Consumption at 100% load (L/hour) 7.1?at 1500rpm
Starter motor 12V
Alternator 12V
Minimum cranking speed 120rpm

Alternator Specifications

Alternator model PI124F
Alternator manufacturer STAMFORD
Exciter type Single bearing, Brushless, Self-excited
Rated output prime power 31.25 KVA
Rated speed 1500 rpm
Rated frequency 50Hz
Number of phase 3
Rated voltage 400V (Available with custom requirements)
Power factor 0.8
Voltage regulation NL-FL ≤±1%
Insulation grade H
Protection grade IP23

Dimension & Weight

Open Type Overall Size:L×W×H (mm) 1600×1300×730 Silent Type Overall Size:L×W×H (mm) 2500×1600×1800
Open Type Weight (kg) 700 Silent Type Weight (kg) 950
