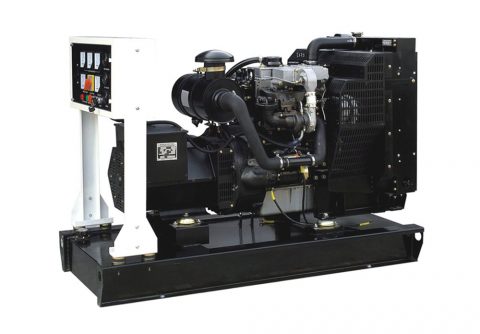

220kw 1500rpm 50Hz 230V AC three phase Perkins diesel generator set

220kw 275kva 1500rpm 50Hz 230V AC three phase Perkins diesel generator set for sale from professional Perkins diesel generator supplier in China at cheap price, powered by UK Perkins 1606A-E93TAG4 6 cylinders in-line diesel engine and original Stamford HCI444D AVR brushless alternator with features of single bearing, flange connection, IP23, H class insulation grade; original UK DeepSea control panel with LCD display, both open type and silent type available, suitable for commercial usage for schools, hospitals, banks, airports, workshops.

SKU: 220GF-P Category:
General Details

220kw 1500rpm 50Hz 230V AC three phase Perkins diesel generator set overall specifications

Model: 220GF-P
Prime Power: 220KW/275KVA
Standby Power: 240KW/300KVA

Diesel Engine Specifications

Engine Model 1606A-E93TAG4
Engine Manufacturer Perkins UK
Cylinder quantity 6
Cylinder Arrangement In-line
Cycle 4
Aspiration Turbo charged
Bore x Stroke (mm x mm) 117×146
Displacement 9.3 L
Compression Ratio 17.2:1
Prime power / Speed (KW/RPM) 239kw/1500
Standby power/ Speed (KW/RPM) 261kw/1500
Governor type N.A.
Piston Speed N.A.
ElectropaK net engine power N.A.
Total Lubrication System Capacity (L) 36
Total Coolant Capacity (L) N.A.
Fuel Consumption at 100% load (L/hour) N.A.
Starter motor N.A.
Alternator N.A.
Minimum cranking speed N.A.

Alternator Specifications

Alternator model HCI444D
Alternator manufacturer STAMFORD
Exciter type Single bearing, Brushless, Self-excited
Rated output prime power 300KVA
Rated speed 1500 rpm
Rated frequency 50Hz
Number of phase 3
Rated voltage 400V (Available with custom requirements)
Power factor 0.8
Voltage regulation NL-FL ≤±1%
Insulation grade H
Protection grade IP23

Dimension & Weight

Open Type Overall Size:L×W×H (mm) 3500×1500×2400 Silent Type Overall Size:L×W×H (mm) 4500×2600×3500
Opent Type Weight (kg) 2200 Silent Type Weight (kg) 4000
