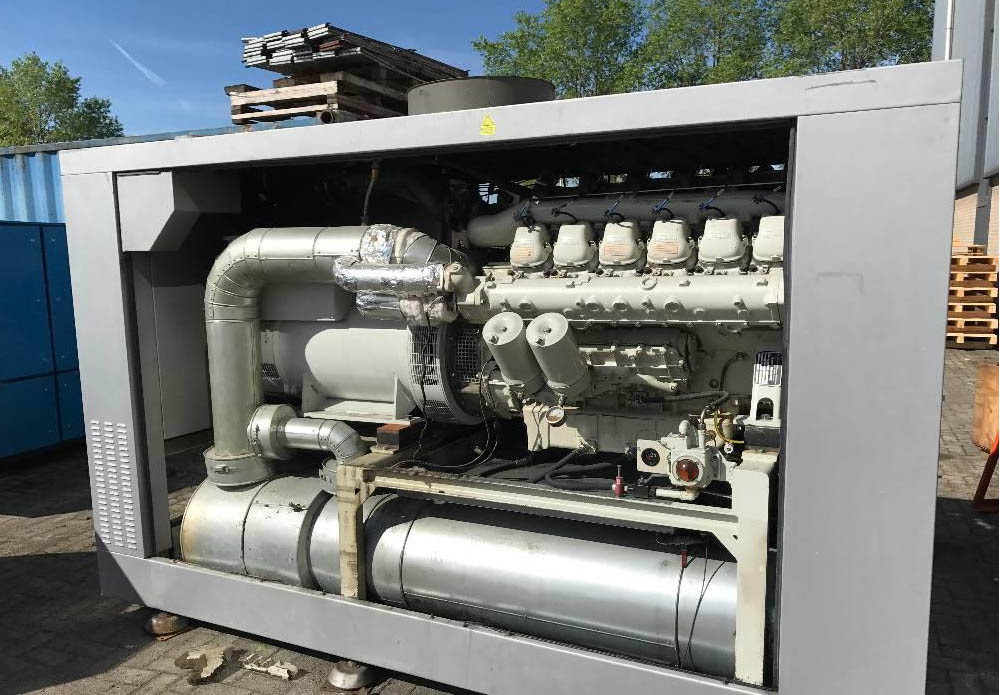

190kw MAN biogas power generator 100% original made in Germany engine

190kw MAN biogas power generator 100% original made in Germany engine with original Stamford alternator, suitable to use in villages, islands, municipal sewage treatment plant.

SKU: 190GF-MSZ Category:
General Details

1. 190kw MAN biogas power generator with 100% original made in Germany engine Overall Technical Specifications:

Genset Model 190GT-MSZ
Rated Power 190KW / 237.5KVA
Rated Speed/ Rated Frequency 1500 rpm /50Hz
Rated Voltage 400/230V
Power Factor 0.8
Phase/Wire 3Phase/4Wire
Rated current (A) 342
Gas Type Biogas
Overall Size (mm) 2900x1100x1600
Weight (kg) 2240
Engine Model MAN E2876LE302
Air intake way Turbo intercooled
Cooling way Closed cooling cycle
Cylinder 6
Displacement (L) 12.8
Bore×Stroke (mm) 128×166
Max. standby power @50Hz 212kw / 265kva
Alternator Model STAMFORD UCD274K
Rated Power 200kw / 250kva
Excitation way Brushless and self exciting
Voltage control AVR
Insulation class H
Protection IP23
Remarks:

1.  Fuel requirements :methane content≥60% ( or Gas low heat value ≥ 21.5 MJ/Nm3 ), sulfur content≤200PPM,  impurities size≤5μm, impurities content≤20mg/Nm³, water content≤20 g/Nm3 ;
2.  Manufacturing standards:ISO8528-5,GB/T2820.5-2009,GB/T22343-2008;
3.  Every gas genset have been pass the test under the load of 0%,25%,50%,75%,100% and the response ability of static, dynamic test, all the protection device and control system are pass strict inspection before they leave factory.

2.Optional parts for 190kw MAN biogas power generator with 100% original made in Germany engine

1)Soundproof canopy
2)Parallel cabinet
3)Synchronization cabinet
4)ATS
5)Inlet gas pressure adjusting valve
6)Gas water separator
7)Extra spare parts

3.Warranty policy of 190kw MAN biogas power generator with 100% original made in Germany engine

1)Since gen-set reached the agreed destination, its main parts will be guaranteed within 12 months or 1000 hours (subject to the earlier mature term).
2)We take charge of all troubles caused by gen-set’s fault and repair according to the  regulation stipulated by original plants.
3)Factors not accordance with the regulation of original plants such as fragile parts, daily consumed components, wrong operating,lack of maintenance are not include in the quality guarantee.

4. Declaration for 190kw MAN biogas power generator with 100% original made in Germany engine

The 190kw MAN biogas power generator designed according to environment condition set by  ISO 3046: atmospheric pressure 100kpa, sea level height 110m , inlet gas temperature 25℃, relative humidity 30% and reference gross heat value of biogas at minimum 21.5MJ/NM3 (>=60% CH4 ). While using in places which don’t meet these conditions, generator rated power and outlet gas temperature parameters will be different more or less.

Feature parameters and technical data provided above was calculated through program with massive biogas experiments and actual use data based on environment condition and biogas heat value and content mentioned above.

All generator parameters of 190GF-MSZ 190kw MAN biogas power generator with 100% original made in Germany engine such as output power, heat consumption were rated value under basic load (100% load). Detailed analysis report of 190kw MAN biogas power generator 190GF-MSZ in different conditions will be provided by our engineer according to user’s actual environments and gas composition conditions if needed.For 60Hz 110V/220V output, please also contact us for detailed technical specification sheet.

Other party are not allowed to use our technical parameters for research and business purpose without our permission. We reserved the rights of changing our design without notify customer or the third party.
