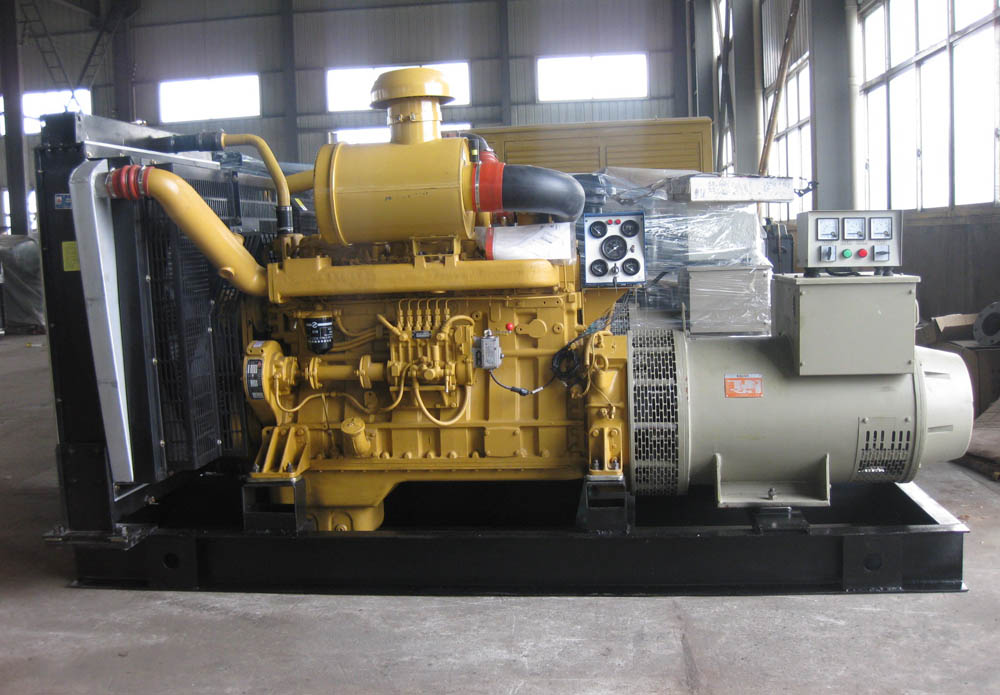

180 kw 225 kva V line 6 cylinders SDEC diesel genset 230V/ 400v output

Water cooling 180 kw 225 kva V line 6 cylinders SDEC diesel genset 230V/ 400v output from China ODM diesel generator manufacturer, with affordable price.

SKU: 180GF Category: SDEC Diesel Generator

General Details
Inquire this product
Product Video
Documents

General Details

Technical specifications of 180 kw 225 kva V line 6 cylinders SDEC diesel genset 230V / 400v output:

Generator set	Model No.	180GF
	Rated power	180KW /225KVA
	Standby power	198KW/247.5KVA
	Output voltage	230 / 400V
	Rated speed (r/min.)	1500
	Noise level	70-75 dB ( silent type )　/ 90-110 db ( open type)
	Power factor	COSΦ=0.8（lagging）
	Phase/wires	3 phase 4 wires
	Start mode	Electric start
	Fuel consumption	225g/kw.h @ 100% loaded
	Rated currency	324 amps
	Protection	Low oil-pressure, High water temperature, Over-speed, Over-current.
	Dimension	2900x950x1500 mm
	Gross weight	2400 kgs
Engine	Brand	SDEC
	Model	G128ZLD2
	Original:	Manufactured by Shanghai Diesel Engine Corporation
	Cylinders	6
	Fuel	0# light diesel
	Cooling	Low Temperature After cooling
	Overload	110%
	Engine Power	206kw / 257.5kva
	Start mode	DC24V electric start
	Cylinders Layout	6V
	Displacement	12.88 L
	Speed-Governing	electrical
	Steady Speed Droop	≤1%
Alternator	Brand	Stamford
	Model	UCD274J
	Protection	IP23
	Frequency fluctuation	≤±0.5 %
	Voltage fluctuation	≤±0.5 %
	Power	184kw / 230kva
	Original	Manufactured by Cummins Generator Technologies China
	Rated voltage	230 /400 V
	Frequency regulation	≤±0.5 %（stable）
	Voltage control	AVR
