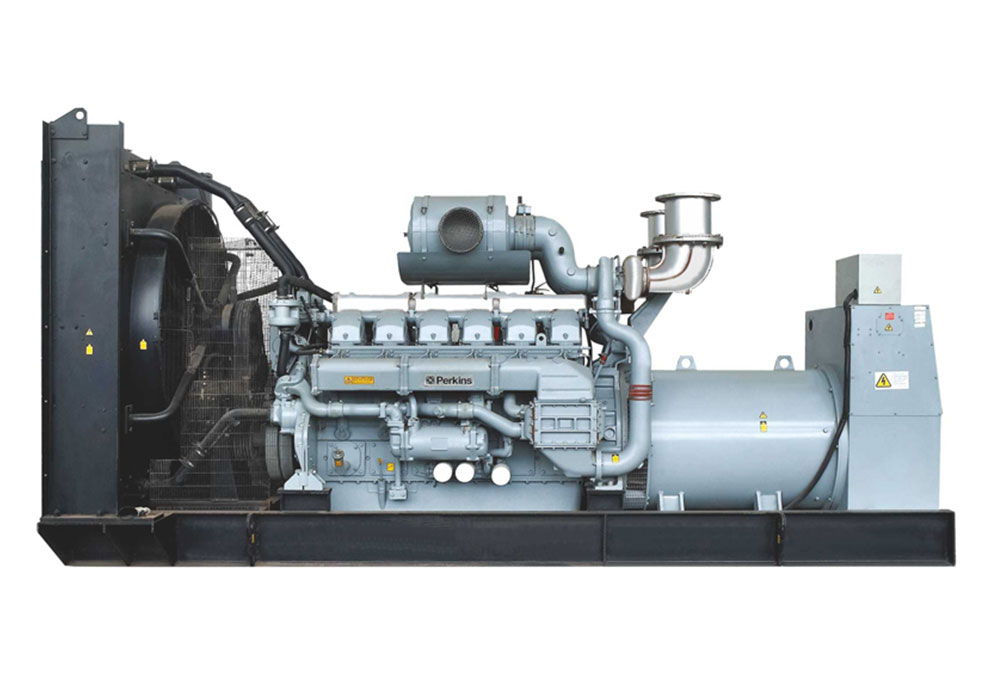

1600kw 2000kva Perkins diesel engine generator overall specifications
| Model: |
1600GF-P |
| Prime Power: |
1600KW/2000KVA |
| Standby Power: |
1760KW/2200KVA |
Diesel Engine Specifications
| Engine Model |
4016TAG2A |
| Engine Manufacturer |
Perkins UK |
| Cylinder quantity |
16 |
| Cylinder Arrangement |
Vee 60° |
| Cycle |
4 |
| Aspiration |
Turbo charged |
| Bore x Stroke (mm x mm) |
160×190 |
| Displacement |
45.84 L |
| Compression Ratio |
13:1 |
| Prime power / Speed (KW/RPM) |
1766kw/1500 |
| Standby power/ Speed (KW/RPM) |
1937kw/1500 |
| Governor type |
Electronic |
| Piston Speed |
9.5 m/s |
| Typical genset electrical output |
1646 kw |
| Total Lubrication System Capacity (L) |
213 |
| Total Coolant Capacity (L) |
316 |
| Fuel Consumption at 100% load (L/hour) |
434 L |
| Starter motor |
24V |
| Alternator |
24V |
| Minimum cranking speed |
120 rpm |
Alternator Specifications
| Alternator model |
PI734F |
| Alternator manufacturer |
STAMFORD |
| Exciter type |
Single bearing, Brushless, Self-excited |
| Rated output prime power |
2080KVA |
| Rated speed |
1500 rpm |
| Rated frequency |
50Hz |
| Number of phase |
3 |
| Rated voltage |
400V (Available with custom requirements) |
| Power factor |
0.8 |
| Voltage regulation NL-FL |
≤±1% |
| Insulation grade |
H |
| Protection grade |
IP23 |
Dimension & Weight
| Open Type Overall Size:L×W×H (mm) |
7000×2300×2800 |
Soundproof Type Overall Size:L×W×H (mm) |
40FT Container |
| Open Type Weight (kg) |
9800 |
Soundproof Type Weight (kg) |
13500 |
Why perkins diesel generator set ?
UK Perkins Engine Co.,Ltd was founded by British entrepreneur,Frank.Perkins in 1932 in UK. It’s one of the global leading engine manufacturer,leader in non road diesel and natural gas engines market ranged from 5hp to 2800hp.Perkins is famous for its service,completely satisfied the customers upon their unique requirements. That’s why it is so reliable among manufacturers. Currently, it is belong to Caterpillar from United States. Perkins diesel generator with below features:
1. Manufactured under USA Caterpillar and UK Rolls-Royce technology;
2. Top quality,using the lasted European technology with high strength wear resistant materials;
3. Low fuel consumption, stable performance, easy maintenance, low operating cost, low emission;
4. Clean, quiet, operating at the lowest noise level;
5. Running up to 6000 hours without any trouble;
6. Providing two years’ standard global warranty , highlighting the manufacturer’s absolute confidence of machine durability and reliability.
