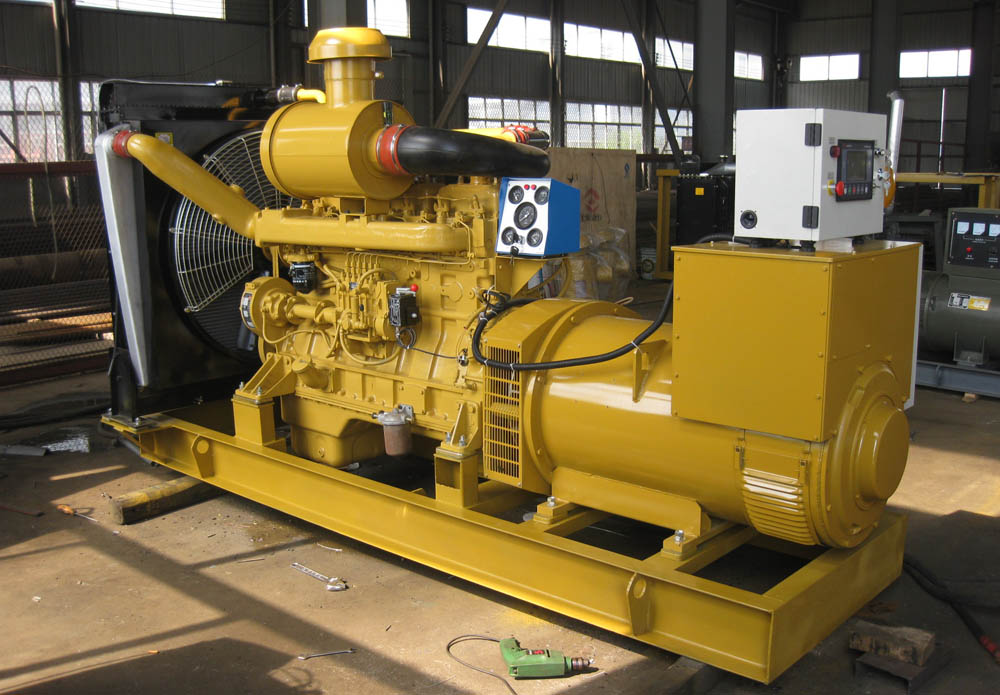

1500rpm high speed 200 kw 250 kva SDEC diesel generator set

Up to 20% discount 1500rpm high speed 200 kw 250 kva SDEC diesel generator set from China manufacturer, for primary usage, 1 year warranty with guaranteed quality .

SKU: 200GF Category:
General Details

Technical specifications of 1500rpm high speed 200 kw 250 kva SDEC diesel generator set :

  Generator set Model No. 200GF
Rated power 200KW /250KVA
Standby power 220KW/275KVA
Output voltage 230 / 400V
Rated speed (r/min.) 1500
Noise level 70-75 dB ( silent type )　/ 90-110 db ( open type)
Power factor COSΦ=0.8（lagging）
Phase/wires 3 phase 4 wires
Start mode Electric start
Fuel consumption 225g/kw.h @ 100% loaded
Rated currency 360 amps
Protection Low oil-pressure, High water temperature, Over-speed, Over-current.
Dimension 2900x950x1500 mm
Gross weight 2500 kgs
  Engine Brand SDEC
Model G128ZLD1
Original: Manufactured by Shanghai Diesel Engine Corporation
Cylinders 6
Fuel 0# light diesel
Cooling Low Temperature After cooling
Overload 110%
Engine Power 236kw / 295kva
Start mode DC24V electric start
Cylinders Layout 6V
Displacement 12.88 L
Speed-Governing electrical
Steady Speed Droop ≤1%
         Alternator Brand Stamford
Model UCD274K
Protection IP23
Frequency fluctuation ≤±0.5 %
Voltage fluctuation ≤±0.5 %
Power 200kw / 250kva
Original Manufactured by Cummins Generator Technologies China
Rated voltage 230 /400 V
Frequency regulation ≤±0.5 %（stable）
Voltage control AVR
